examples.SingleDevs

Class SimpleAtomic

java.lang.Object

modeling.models.Devs

modeling.models.AtomicDevs

examples.SingleDevs.SimpleAtomic

All Implemented Interfaces:

Comparable<INamed>, IAtomicDevs, IDevs, INamed

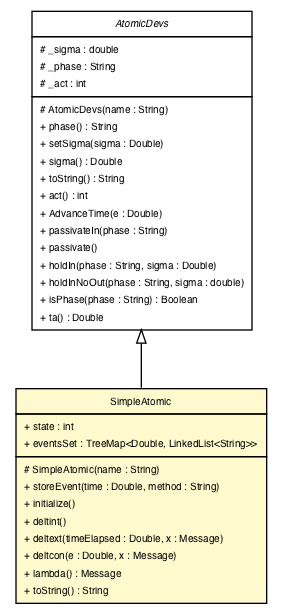

public class SimpleAtomic
extends AtomicDevs

This class is a simple example of what can be a basic atomic model. This model changes its state, which is an integer, for every Message Content it receives (that is to say at each external or confluent transition). After an external or a confluent transition, the model waits for 10 units of time, while after an internal transition it goes in a passive state for an infinite amount of time.

Each transition is recorded for later displaying and analysis.

Author:

cmascart, vadao

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	SimpleAtomic.SimpleAtomicFactory The factory of this atomci model.

Nested classes/interfaces inherited from class modeling.models.AtomicDevs

AtomicDevs.AtomicFactory

Nested classes/interfaces inherited from class modeling.models.Devs

Devs.DevsFactory

Field Summary

Fields

Modifier and Type	Field and Description
TreeMap<Double,LinkedList<String>>	eventsSet Used for storing the state of the model at each event.
int	state The state of the model.

Fields inherited from class modeling.models.AtomicDevs

_act, _phase, _sigma

Fields inherited from class modeling.models.Devs

_inputMessage, _inputPorts, _name, _output, _outputPorts, _parent, _simulator

Constructor Summary

Constructors

Modifier	Constructor and Description
protected	SimpleAtomic(String name) Constructor that initializes the name of the model and its attributes (empty Tree and state to 0).

Method Summary

Modifier and Type	Method and Description
void	deltcon(Double e, Message x) The confluent transition function that is called when both internal and external transitions should happen at the exactly same time.
void	deltext(Double timeElapsed, Message x) The external transition function.
void	deltint() The internal transition function.
void	initialize() Initialize the model.
Message	lambda() Devs lambda function that makes the state becoming the model's output.
void	storeEvent(Double time, String method) Store a new event in the event map.
String	toString() Generate a string that represents the model state.

Methods inherited from class modeling.models.AtomicDevs

act, AdvanceTime, holdIn, holdInNoOut, isPhase, passivate, passivateIn, phase, setSigma, sigma, ta

Methods inherited from class modeling.models.Devs

addInport, addOutport, compareTo, fullName, makeContent, name, parent, setParent, setSimulator, simulator

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface modeling.models.IDevs

addInport, addOutport, fullName, parent, setParent, setSimulator, simulator

Methods inherited from interface util.INamed

name

Methods inherited from interface java.lang.Comparable

compareTo

Field Detail

state

public int state

The state of the model. Changes at every external event.

eventsSet

public TreeMap<Double,LinkedList<String>> eventsSet

Used for storing the state of the model at each event.

Constructor Detail

SimpleAtomic

protected SimpleAtomic(String name)

Constructor that initializes the name of the model and its attributes (empty Tree and state to 0).

Parameters:

name - Name to give to the new instance.

Method Detail

storeEvent

public void storeEvent(Double time,
                       String method)

Store a new event in the event map.

Parameters:

time - The event occurrence date.

method - The event that happens.

initialize

public void initialize()

Initialize the model.

deltint

public void deltint()

The internal transition function.

deltext

public void deltext(Double timeElapsed,
                    Message x)

The external transition function.

Parameters:

timeElapsed - This time corresponds to the time to wait before the transition happens.

x - This is the message to be sent at the transition.

deltcon

public void deltcon(Double e,
                    Message x)

The confluent transition function that is called when both internal and external transitions should happen at the exactly same time.

Parameters:

e - This time corresponds to the time to wait before the transition happens.

x - This is the message to be sent at the transition.

lambda

public Message lambda()

Devs lambda function that makes the state becoming the model's output.

Returns:

an output message.

toString

public String toString()

Generate a string that represents the model state.

Overrides:

toString in class AtomicDevs

Returns:

A string that represents the model state.
