examples.HierarchicalDevs

Class SimpleHierarchicalModel

java.lang.Object

modeling.models.Devs

modeling.models.CoupledDevs

examples.HierarchicalDevs.SimpleHierarchicalModel

All Implemented Interfaces:

Comparable<INamed>, ICoupledDevs, IDevs, INamed

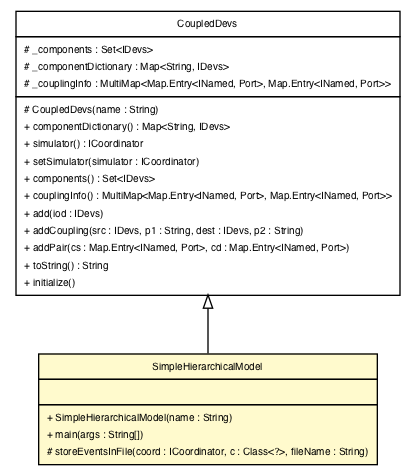

public class SimpleHierarchicalModel
extends CoupledDevs

A simple example of a two-levels deep coupled model. Creates two coupled models (SimpleCoupledModel) and three atomic models (SimpleAtomic) all at the same level. The second level is made of the atomic models under the two coupled models.

In total there are nine atomic models and three coupled models being simulated.

The simulation starts when a Message is received by this coupled model, which transmits it to one of its coupled model.

Author:

Rares

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	SimpleHierarchicalModel.SHMFactory The factory of this coupled model.

Nested classes/interfaces inherited from class modeling.models.CoupledDevs

CoupledDevs.CoupledFactory

Nested classes/interfaces inherited from class modeling.models.Devs

Devs.DevsFactory

Field Summary

Fields inherited from class modeling.models.CoupledDevs

_componentDictionary, _components, _couplingInfo

Fields inherited from class modeling.models.Devs

_inputMessage, _inputPorts, _name, _output, _outputPorts, _parent, _simulator

Constructor Summary

Constructors

Constructor and Description
SimpleHierarchicalModel(String name) Create a new instance of this coupled model with the passed name.

Method Summary

Modifier and Type	Method and Description
static void	main(String[] args) Instantiates this coupled model and makes a simulation of it until all atomic models are in a passive state for an infinite time (next event in the system at infinity).
protected static void	storeEventsInFile(ICoordinator coord, Class<? extends CoupledDevs> c, String fileName) Takes a coupled model and prints its content (state of its atomic models at all levels) to a file.

Methods inherited from class modeling.models.CoupledDevs

add, addCoupling, addPair, componentDictionary, components, couplingInfo, initialize, setSimulator, simulator, toString

Methods inherited from class modeling.models.Devs

addInport, addOutport, compareTo, fullName, makeContent, name, parent, setParent, setSimulator

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface modeling.models.IDevs

act, addInport, addOutport, deltcon, deltext, deltint, fullName, lambda, parent, setParent, setSimulator, ta

Methods inherited from interface util.INamed

name

Methods inherited from interface java.lang.Comparable

compareTo

Constructor Detail

SimpleHierarchicalModel

public SimpleHierarchicalModel(String name)

Create a new instance of this coupled model with the passed name.

Parameters:

name - The name of the new instance.

Method Detail

main

public static void main(String[] args)

Instantiates this coupled model and makes a simulation of it until all atomic models are in a passive state for an infinite time (next event in the system at infinity). The simulation begins with the injection of a new Message in the system at t = 0.0. At the end of the simulation the content of the coupled model is printed to a file.

Parameters:

args - unused.

storeEventsInFile

protected static void storeEventsInFile(ICoordinator coord,
                                        Class<? extends CoupledDevs> c,
                                        String fileName)

Takes a coupled model and prints its content (state of its atomic models at all levels) to a file. More precisely, the atomic model used in here stores all the transitions it makes. This is what is printed in the file.

Parameters:

coord - The coordinator managing the simulation.

c - The class of the root coupled model.

fileName - The name of the file. The actual path depends on the class name and a predefined part.
